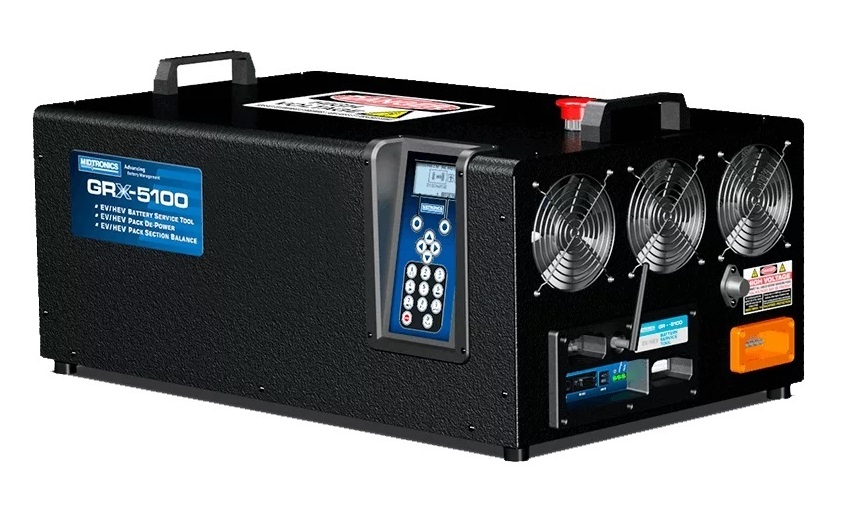

The industry’s first and most fully-featured high-voltage EV/HEV battery service tool, the GRX-5100 performs full battery pack service for hybrid and electric vehicles.

-   Safely discharges energy from the battery pack
-   Individually balances battery pack modules to ensure optimal pack operation
-   Continuously monitors voltage and temperature during service
-   On-screen verification that the battery is properly connected and operations can safely begin
-   Captures vehicle VIN and generates a detailed battery pack status report

GRX-5100 SELECTED FEATURES

-   Software updatable via USB interface
-   0 – 384 VDC compliant
-   Reverse polarity protected
-   Hard safety disconnect
-   Redundant systems monitoring, including battery module temperature
       • Throttles back current upon excessive temperature rise or restricted air flow
       • Terminates session when reaching temperature limit
-  Monitors high-voltage leakage to chassis
       • Terminates session upon excessive leakage

Battery Management Processes

LMidtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications.

Functions:

- De-Power: Safely discharges energy from the battery pack or battery sections to make them safe for transportation. De-powering can be performed on battery packs in or out of vehicle.
- Section Balance: Balances the sections of the battery pack to ensure optimal battery pack operation. Sections are charged or discharged individually to bring the pack into alignment.
- View Pack Info: Captures the vehicle VIN and generates a detailed status report for the vehicle’s battery pack, including temperature sensors and individual cell voltages.

PRIMARY USES
- EV Battery Pack Depowering
- EV Battery Module Balancing
- EV Battery Rescue Chargingbr
